Contec TLC9803 3-lead 24-hour ECG Holter Introduction

Contec TLC9803 3-lead 24-hour ECG Holter is a dynamic ECG Systems with 3-lead and can continuously record ECG waveform for 24-hour. The ECG waveform can be analysed by PC software which comes complimentary with the Holter.

Contec TLC9803 3-lead 24-hour ECG Holter Features

• Real time store ECG data for 24-hour
• Flexible analysis channel selection function
• One-key print, convenient and fast to print the reports
• Arrhythmia analysis basing on MCSSTM and TMCATM
• With analysis functions for 5-minute, 1-hour and 24-hour heart rate variability
• The death risk in patients with myocardial infarction can be predicted by the “HRT” analysis function.
• The risk of sleep breath pause can be predicted by the unique “Sleep breath pause syndrome “analysis function.
• “T-Wave alternation” is an important index to predict the malignant arrhythmia and sudden cardiac death
• Flexible atrial fibrillation analysis, which ensures that physicians can use the whole or segmented AUTO/manual analysis, more accurate in atrial fibrillation analysis.
• More than 10 templates (such as atrial premature beat, ventricular premature beat, long interval, atrial fibrillation, etc.) and many user-defined modules, which can almost distinguish any kind of pathologic waveforms.
• Powerful pacemaker analysis function with many pacing analysis templates, such as “Dual chamber pacing”, “Atrial pacing”, “Ventricular pacing”, “Ventricular Pseudofusion” and “Ventricular asynchronous pacing”, etc.

Contec TLC9803 3-lead 24-hour ECG Holter Specifications:

• Lead: 3-lead
• Record time: 24-hour
• Power supply: two “AA” batteries
• Interface: USB2.0
• Calibration voltage: 1mV±5%
• Noise level: ≤30μV
• CMRR: ≥60dB
• Low-frequency characteristics: time constant≥3.2s
• Scan speed: 25mm/s±5%
• Polarizing voltage: ±300mV, sensitivity: ≤±10%
• Minimum measure signal: 50 µV p-p
• Dimension: 111mm(L) × 60mm(W) × 25mm(H)
• Weight: about 105g(without batteries)

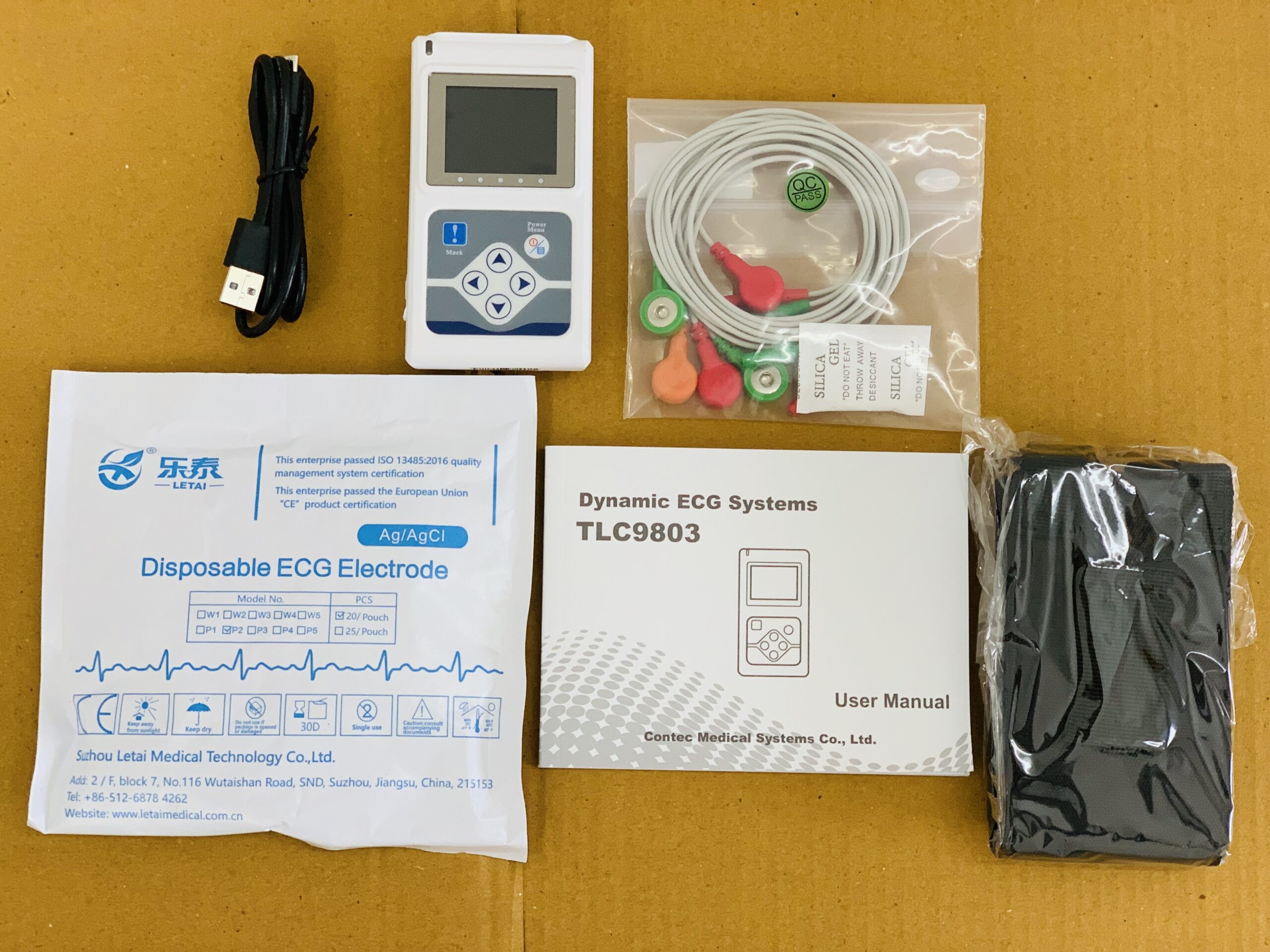

Contec TLC9803 3-lead 24-hour ECG Holter Specifications

• Lead cable (1 set)
• ECG electrode (1 bag)
• USB cable(1)
• Bag(1)
• User manual(1)
• Software
