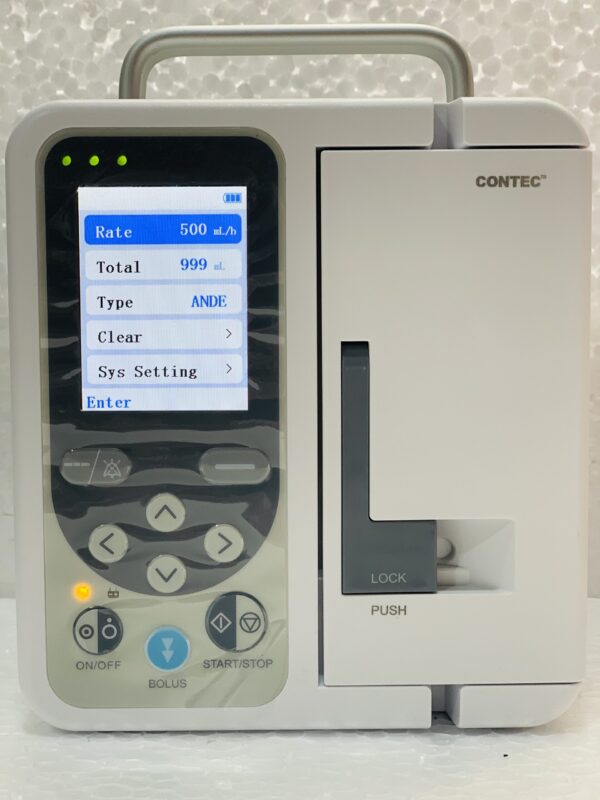

Contec Infusion Pump SP 750

Contec SP750 is a volumetric infusion pump. Flow control with high accurate and comprehensive alarm measures ensure patient’s safety and optimum therapeutic effect.

Brand: Contec
Color:  White
Product Type: Volumetric Infusion Pump
Weight: 2kg
Dimension: 197mm*145mm*135mm (L × W × H)
Frequency: 50Hz
Voltage: 240V
Display: TFT-LCD
Display Size: 2.8inch
Infusion Rate: 699ml/h
Total Volume: 9999ml/h
Accuracy: +-5% (use the IV set calibrated)

Contec SP750 Infusion Pump Features:

• High-accuracy infusion control, compatible with most standard IV Sets.
• Reminding of starting infusion, and residual time display.
• Alarm threshold of air bubble and pressure can be adjusted, and alarm volume is also adjustable.
• Accompanying IV-set clamp prevents liquid flowing freely if the pump door opens accidentally.
• A.B.S–ANTI BOLUS system prevents a moment’s high-dose injection from the sudden obstruction disappearing.
• Automatic flow shut-off during alarms.
• The versatile bracket enables mounting the pump on infusion pole in many directions, which can save the space.
• Suppliers can calibrate to the new IV set provided by user, and input parameters into infusion pump to ensure accuracy.

Contec SP750 Infusion Pump Performance:

• Flow rate: 1ml/h~699ml/h
• Bolus rate: 699ml/h
• Preset volume range: 1ml~9999 ml
• Infusion accuracy: ±5%
• KVO rate:1~5ml/h (keep vein open, KVO infusion rate)
• Display information: infusion rate, total volume, infused volume, residual time
• Alarm functions: infusion reminding, door open, occlusion, air bubbles, Motor failure, communication failure, near end, KVO state, low power, No power,
• Occlusion pressure: 100kPa~300kPa
• Safety Classification: Class I, Type BF (DC input part is Class II, type BF.)
• Waterproof: IPX1
• Working mode: Continuous operation
• Power supply: AC: 100- 240V, 50 /60 Hz or DC: 12V
  Rechargeable Li-Ion battery, 7.4 V/3700mAh

In the Box:

• Versatile bracket
• Power cord
• User Manual

Warranty: 1 Year
