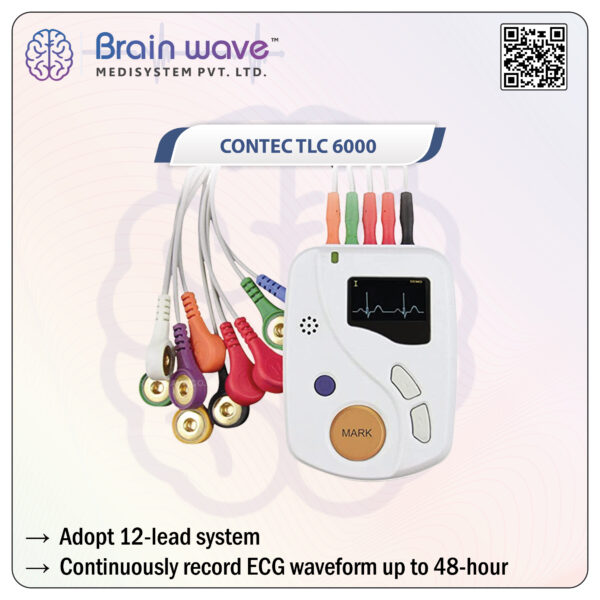

Contec ECG Holter System TLC6000 (12 Lead)
₹44,500.00
TLC6000 Dynamic ECG System contains recorder & analysis software. Recorder is an easy- to -use unit, which collects 12-lead ECG waveform synchronously and records continuously for 48 hours. The data collected by the recorder can be transfered to PC through the software.
TLC6000 Dynamic ECG System contains recorder & analysis software. Recorder is an easy- to -use unit, which collects 12-lead ECG waveform synchronously and records continuously for 48 hours. The data collected by the recorder can be transfered to PC through the software.
Product Details
- Brand : Contec
- Country of origin : China
- Warranty :1 year
- Colour : White
- Number of channels: 12 channels;
- Power: 2 AA size batteries;
- Recorder dimension: 80.5mm(L) × 59.5mm(W) × 22mm(H)
- Weight: about 61.5g(without batteries)
Details
Main Features
- Contec TLC6000 Dynamic ECG Systems contains recorder & analysis software. Recorder is an easy- to -use unit, which collects 12-lead ECG waveform synchronously and records continuously for 48 hours.
- With 12 leads synchro analysis , QRS search can be more exactly
- There are more than 10 templates as atrial premature beat module, ventricular premature beat module, long interval module, atrial flutter module, atrial fibrillation module etc.and multiplicate User-defined templates could almost identify every kind of pathologic waveforms
- Flexible atrial fibrillation analysis, so that physicians can use full, segmented automatic, manual analysis of atrial fibrillation, make the analysis more quickly and accurately
- Powerful pacemaker analysis, on the AAI, VVI, DDD etc. all pacemaker analysis
- Any period of single lead or 12-leads ECG can be reviewed at any time with the function of fast waveform review and analysis
- Analysis of heart rate variability with short-range 5 minutes and long-range 1 hour and full analysis of heart rate variability
- A one-stop printing operation, report printing process is convenient and quick
- “Heart rate turbulence” analysis can predict the risk of death in patients with myocardial infarction
- “T Wave alternation” analysis is a important index on judging and preventing Arrhythmia
- The report has more reference value with the functions of VCG, VLP, TVCG and QTD analysis.
Performance
Lead: standard 12-lead
Power supply: one “AAA” battery
Calibration voltage: 1mV±5%
Noise level: ≤30µV p-p
CMRR: ≥60dB
Frequency response: 10Hz as benchmark, 0.5Hz~55Hz: -3dB
Low-frequency characteristics: ≥3.2s
Scan speed: 25mm/s±5%
Polarizing voltage: ±300mV, sensitivity: ≤±10%

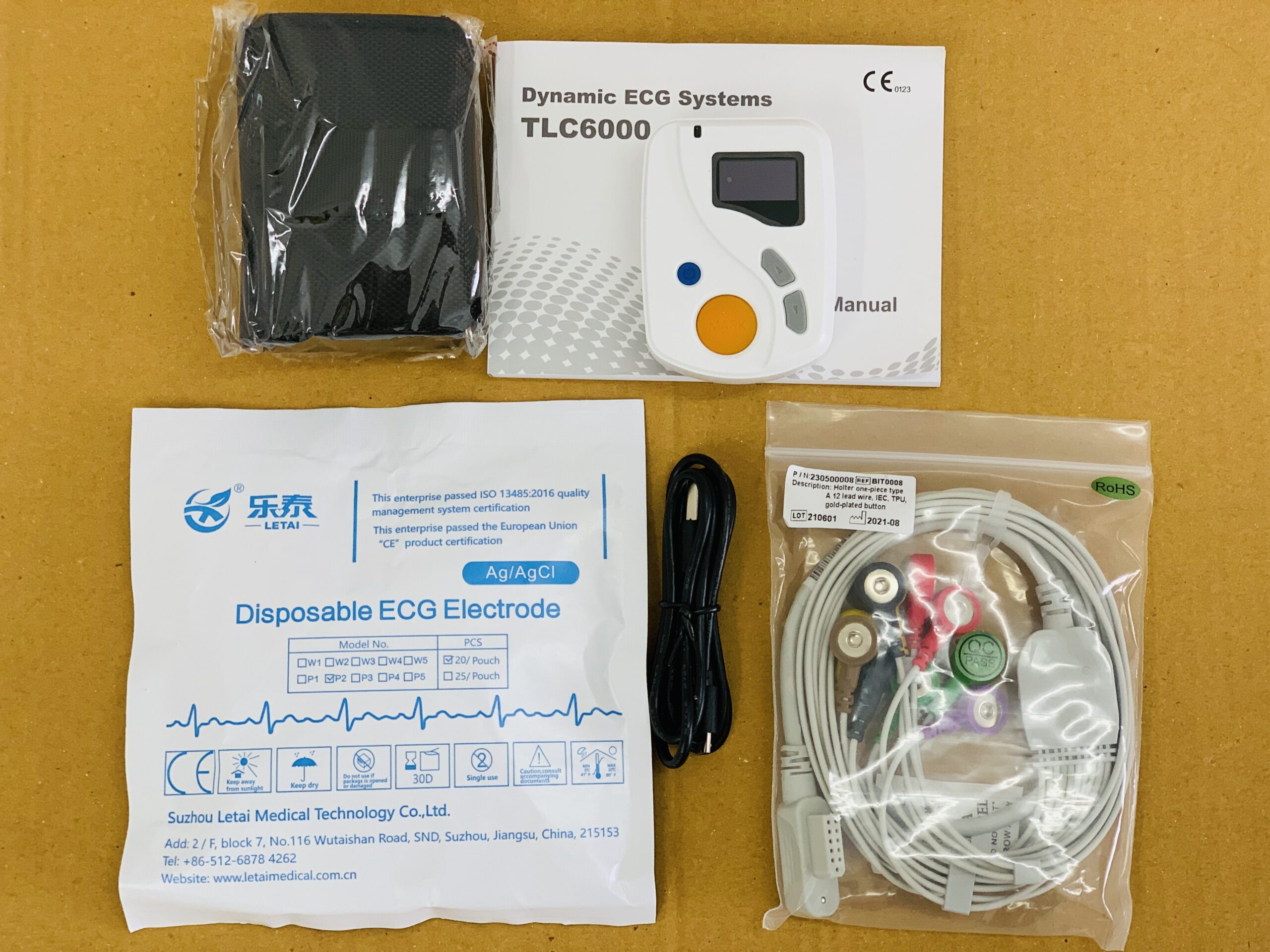

Minimum measure signal: 50 µV p-pCONTENT OF BOX
Lead cable (1 set)
ECG electrode (1 bag)
USB cable(1)
Bag(1)
User manual(1)]
