Bistos BT350 Fetal Monitor CTG Machine with 7″ Screen

Description

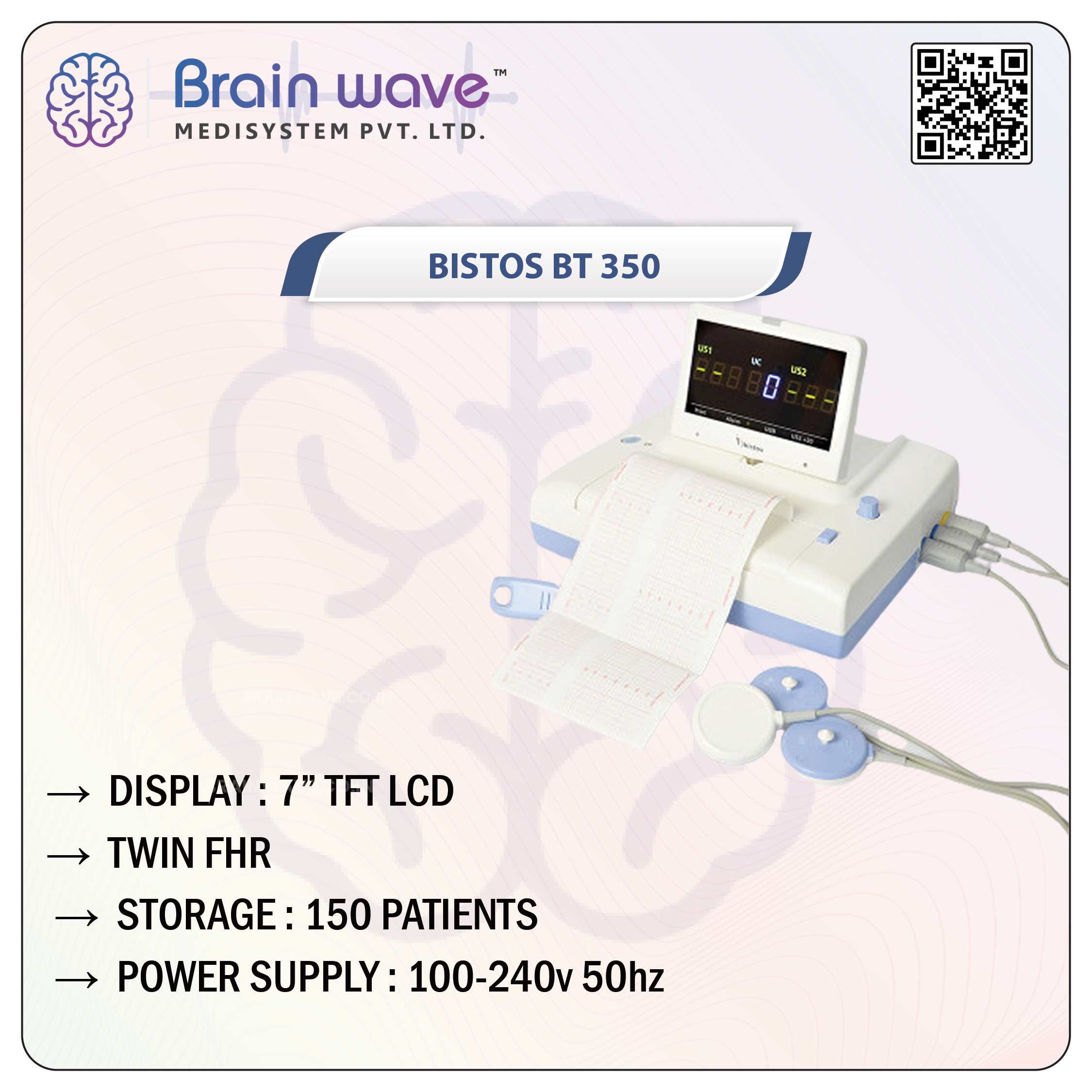

Bistos BT350 Fetal Monitor CTG Machine

Bistos BT350 Fetal Monitor CTG Machine indicates FHR as numeral by irradiating ultrasound at the abdomen, abstracting Doppler frequency of heart oeat cycle from the signals reflected from fetal heart, and outputting FHR change as s sound, and analyzing these signals. Bes des, you can measure UC oy using pressure sensor. BT-350 prints FHR, UC, and FM on the thermal paper and displays them on the LCD display.

Especially, the doppler probe has 9 crystal sensors for catching FHR effectively, and it is water-proof type. BT-350 has 2 kinds of installation functions such as notebook, and wall mount.

Bistos BT350 Fetal Monitor CTG Machine Features:

• • BT-350 LCD – displays trace and numbers. Stored data can be reviewed afterward.
  • CTG Analysis* – calculates important data such as baseline, Acceleration, Deceleration, fetal movement.
  • Cross Channel Verification – prevent the FHR is miscalculated by twin fetus by an alarm.
  • Multi-Language Support* – 13 languages including English, Chinese, Spanish, German, Russian, Portuguese
  • BT-350 LED – displays numbers only. A large and bright LED is visible from a
    distance.
  • Various Paper Selection – BT-350 can use two most usual papers in the market (30-240bpm / 50-210bpmUSB Data Save – FHR and UC trend data can be exported to USB memory stick and it can be managed by BCM-350 Central Monitoring Software
  • Central Monitoring Software – Works on BCM-350 software along with other Fetal monitors by wire or wireless
  • Portability – Compact design with built-in handle enable portable use especially to midwives
  • Rechargeable Battery (Optional)* – Li-ion battery enable BT-300 can operate without AC power up to 3 hours
  • Waterproof probe – All probes are waterproof and ready for a water birth (IPX8).
  • Offset DOP2 FHR – This function makes DOP2 FHR 20 bpm higher to enhance DOP2 trend easy to read.
  • Acoustic Stimulator* – Stimulate sleeping fetus to speed up the test or to
    facilitate further evaluation of the non-stress test (NST).
  • Zoom-in Function – Enlarge FHR graph scale on the paper to examine the trend with more dynamics by focusing FHR range to the most frequent area
  • Connection – Maximum connection: 16 monitors, Wire connection: RS-232C, LAN*Wireless connection: Bluetooth (optional)
  • Various Bed Display mode – Various styles of Bed display can satisfy every user with their own preference.



Bistos BT350 Fetal Monitor CTG Machine CTG Specifications:

FHR Range (BPM)	30 ~ 240 / 50 ~ 210
UC Probe	External type
UC Range	0 – 99
Display Type	7” Color LCD
Trend Data Save	450 Hours
Alarm Sound Level	2 levels
Alarm Sound	Tachycardia, Bradycardia
Information Sound	Probe Disconnection, Printer door open, No Paper, Low Battery
Printer Speed	1, 2, 3cm/minute, 10cm/min(Trend mode only)
Thermal Paper (Z-fold)	150mm(W) x 13.5m(L)
Auto Print	10, 20, 30, 40, 50, 60minute
PC Interface	RS-232C / Ethernet
Power	AC100-240V (50/60Hz) DC18V/2.5A
Weight (Kg)	2.8
Battery Life (h) -Optional	3-5

Bistos BT350 Fetal Monitor CTG Machine Box Contents:

• • • 2 Doppler Probe (FHR), 1 UC Contraction Probe
    • Event Marker, AST Probe (Option)
    • 2x Z-folded type Paper, Probe Belts
    • Power Cord & Power Adaptor
    • Battery (Optional)
    • Ultrasound Gel

Bistos BT350 Fetal Monitor CTG Machine Documents:



Frequently Asked Questions:

Do we get the gel with the Bistos BT350 Fetal Monitor CTG Machine fetal monitor?

Yes, you get an ultrasound gel with the Bistos Fetal Monitor.

Is there a warranty for Bistos BT350 Fetal Monitor CTG Machine?

Yes, you will get a 1 years warranty on the Bistos fetal monitor.

What is the screen size and battery life of Bistos BT350 Fetal Monitor CTG Machine?

BT 350 fetal monitor has a 7 inch LCD screen and a battery (optional) life of 3-5 hrs.

Does Bistos BT350 Fetal Monitor CTG Machine come with single or dual probe?

BT 350 fetal monitor comes with dual FHR probe by default.

Where can I find the paper for Bistos BT350 Fetal Monitor CTG Machine?

BT-350 use z-fold type paper which is available on all online stores.
