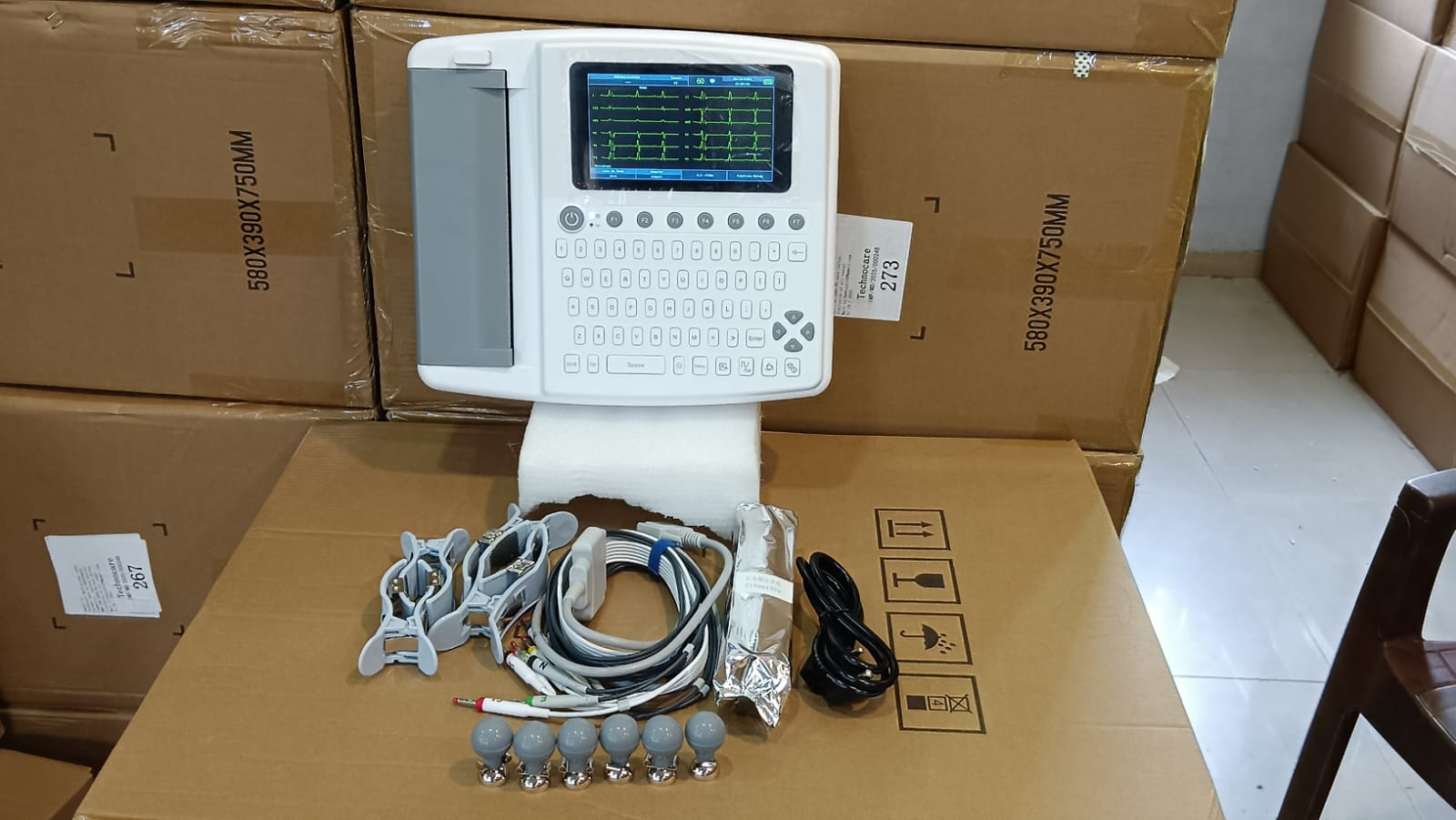

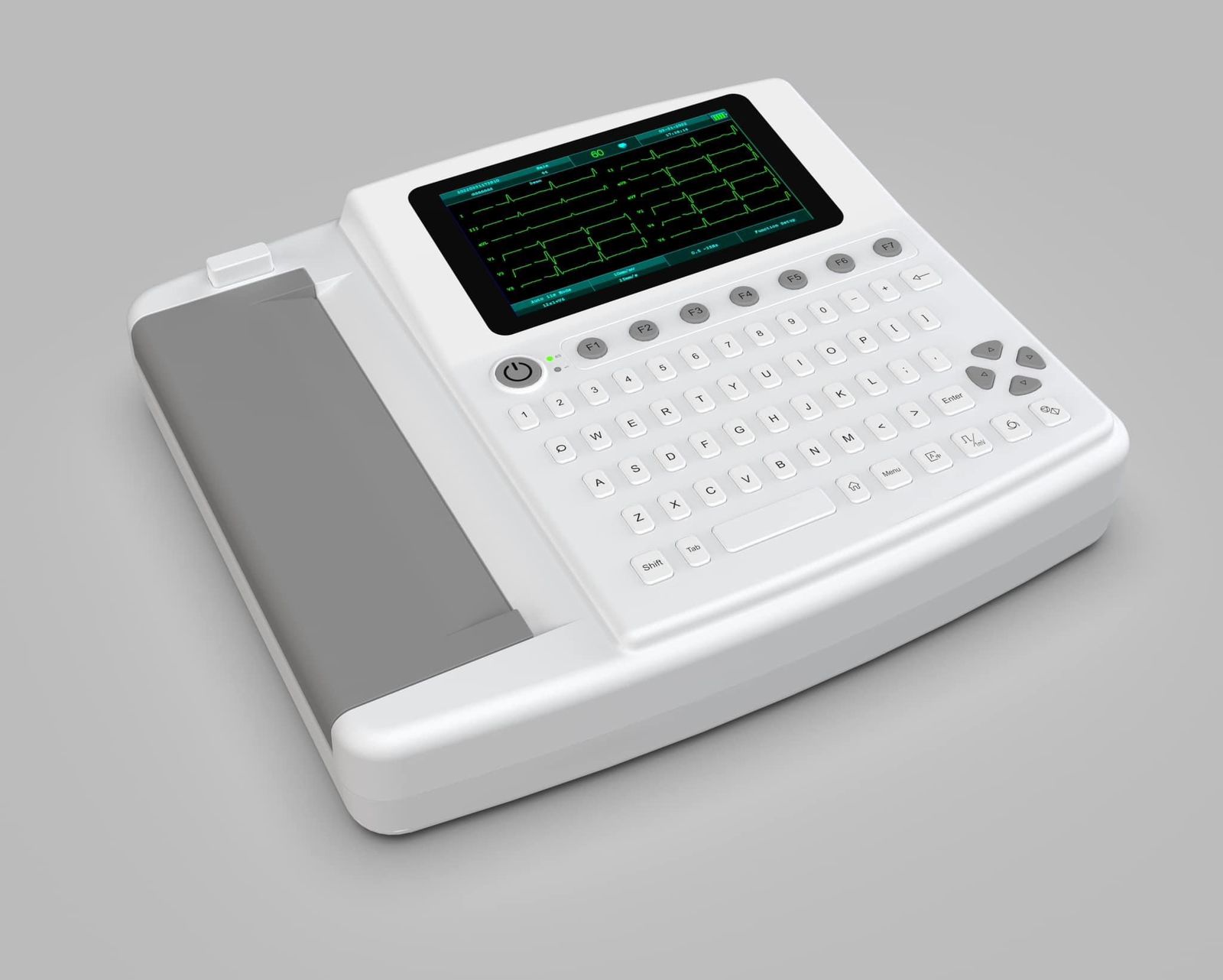

12 Channel ECG Machine BWM-1201

₹38,000

2 products sold in last 19 hours
Selling fast! Over 15 people have in their cart
29 people are viewing this right now
  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping & Returns : On all orders over $200
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout

Description

Features :-
High-resolution 7-inch color touchscreen
Fully alphanumeric keyboard with shortcut keys, efficient operation
Simultaneous acquisition and display of 12 ECG leads
Automatic ECG measurement and interpretation
Internal memory for up to 1000 cases, useful for case reviews and statistics
Built-in high capacity rechargeable lithium battery
ECG data can be transferred to PC via USB
ECG reports can be saved and opened on the PC via the ECG playback software
Optional CardioSoft pro PC software for data transfer (saving, reviewing, printing a report)
Specifications :-

Technical Parameter:

Leads: Standard 12 Lieads
Patient leakage current: < 10μA
Input impedance: ≥5MΩ
Frequency response: 1Hz~75Hz
Time constant: Time constant > 3.2s
CMRR: ＞60dB
EMG noise filter: 25/35Hz(-3dB)
Recording method: thermal array printing system
Recording paper specification:

Paper speed:
Automatic recording: 25mm/s 50mm/s Error:±5%
Rhythmic recording: 25mm/s 50mm/s Error:±5%
Manual recording: 5 mm/s 6.25 mm/s 10 mms10mm/s 12.5 mm/s 25 mm/s 50 mm/s Error:±5%.
Sensitivity selection: 2.55102040mm/mV 5 options Error:±5%. The default sensitivity is 10mm/mV±0.2mm/mV.
Automatic recording: set up recording according to recording format and automatic mode with automatic change of line measurement and analysis.
Manual recording: set up recording according to recording format with manual change of measurement lines.
Measurement parameters: HR P-R interval P duration QRS duration T duration Q-T interval Q-Tc P axis QRS axis T axis R(V5) S(V1) R(V5)+S(V1)
Product safety type: class I type CF Defibrillation safe applied part.
Continuous polarization voltage: ±300mV
Noise level: ≤15μVp-p
Fuse specification: 2 pieces φ5×20mm AC slow-blow; T1.6A/250V(220V power supply)

Operation:
a) Ambient temperature: +5℃~+35℃
b) Relative humidity: ≤80%
c) Power supply: AC:100~240V50/60Hz
 DC:7.4V 3700 mAh rechargeable lithium battery
d) Atmospheric pressure: 86kPa~106kPa

Transportation and storage:
a) Ambient temperature: -10℃~55℃
b) Relative humidity: ≤95%
c) Atmospheric pressure: 50kPa~106kPa
Input type: floating and defibrillation protection
